Luxx
Rear-Fold on VersaTract Platforms

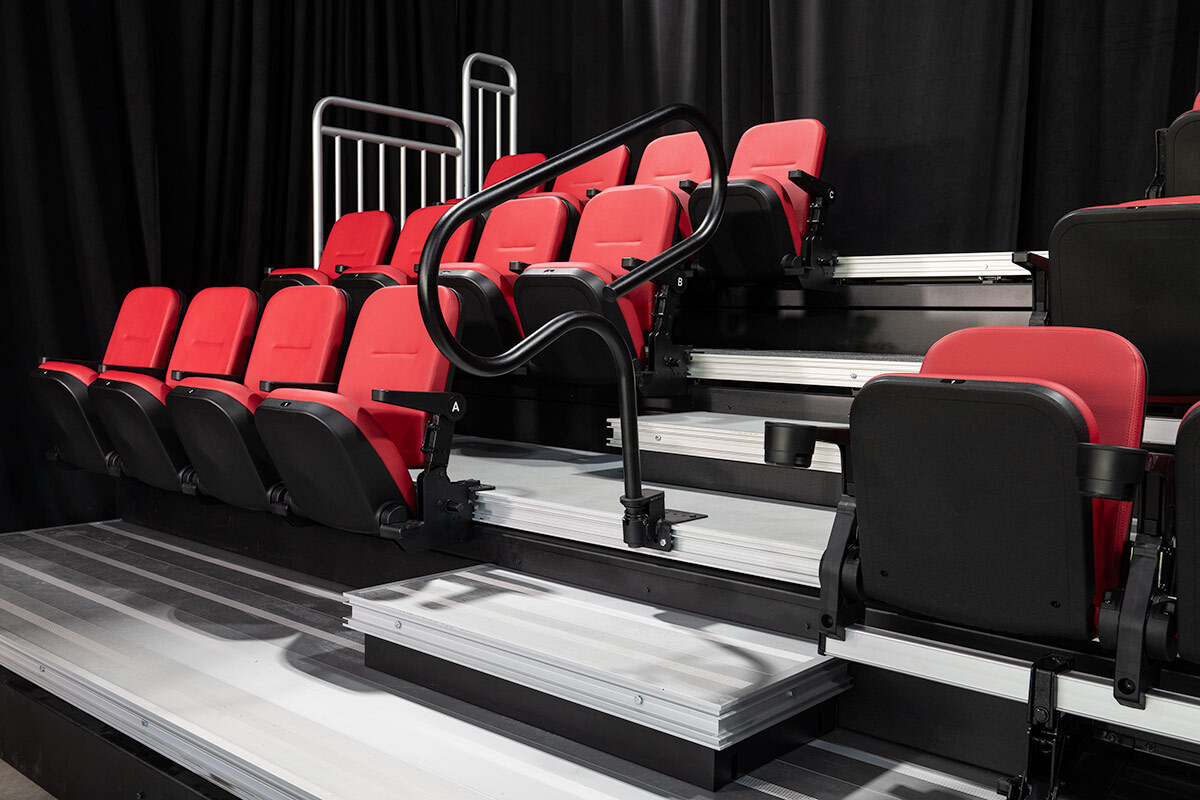

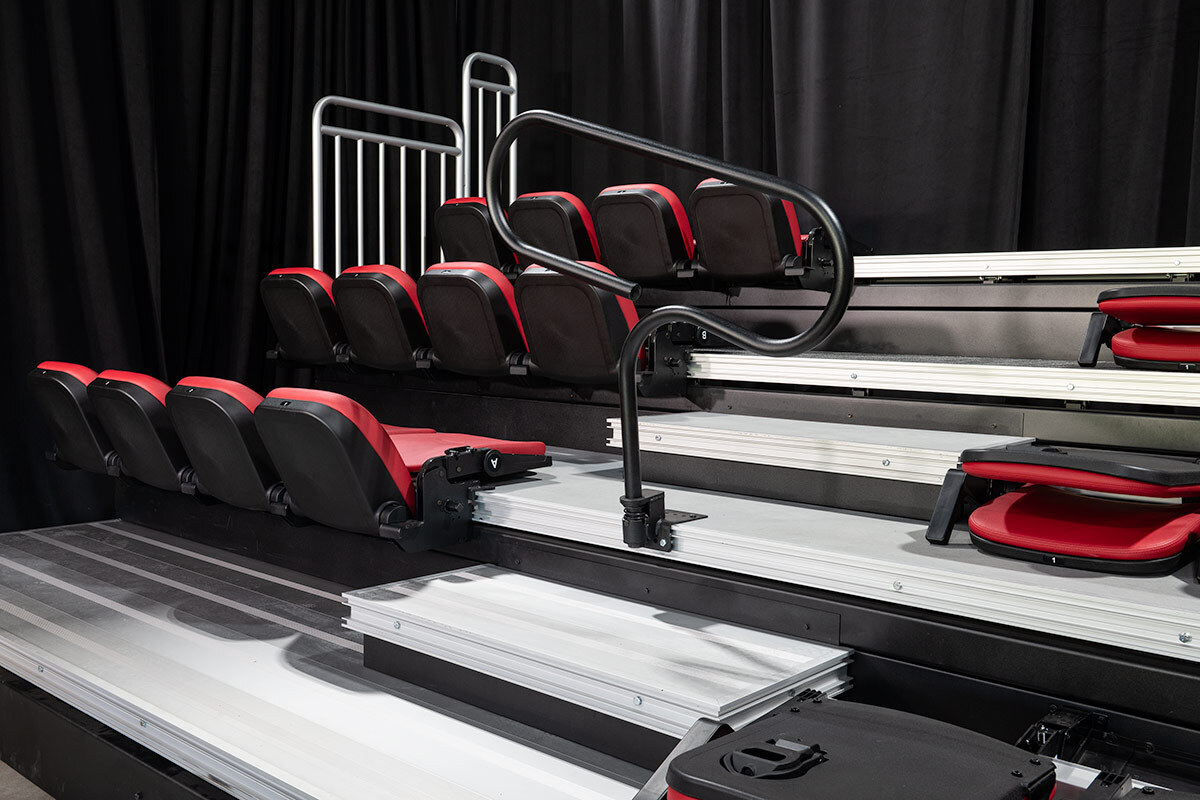

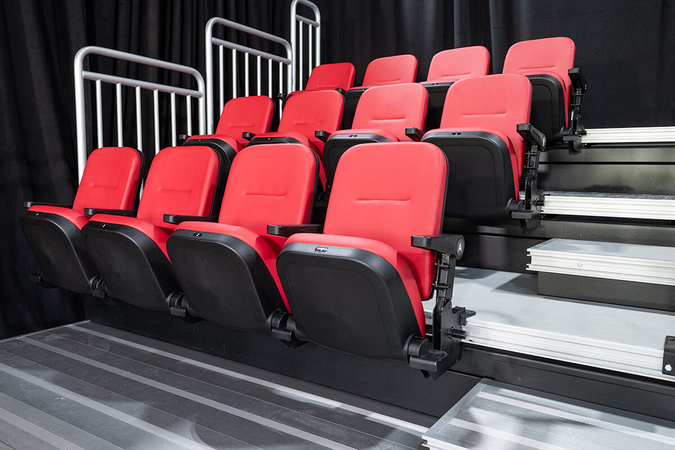

Nose-Mount Luxx chairs are available with the industry’s first semi-automated chair fold down telescopic system to create a superior experience with faster changeovers and increased ROI.
We've designed Luxx with flexibility built right in so it can be used in a variety of configurations.
Key Advantages:
- Backs and seats are sewn with French-seams for a crisp, stylish appearance, backs include a horizontal pleat for a consistent appearance with fixed seating models
- Provided with a 36” back height
- Available with embroidered logos
- Seats can be provided with 3/4 safety fold or full fold self-rising mechanisms

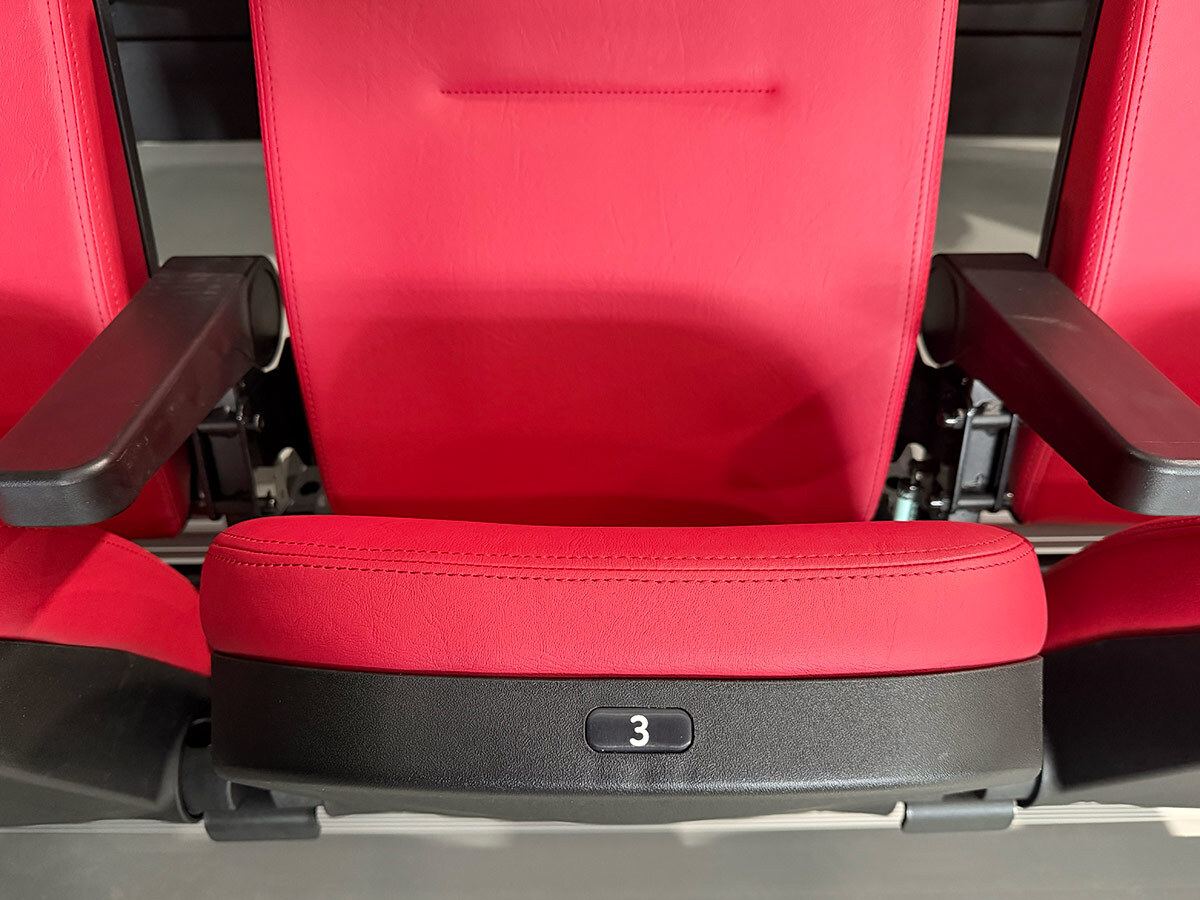

- Backs are provided with 2” molded foam cushions, seats have a 3" thick cushion
- Backs can be installed in two back pitches (11° or 14°) to optimize sight lines and comfort
- Available with our innovative rear-mount flip-up cupholder that stores within the molded recess when not in use
- Black, molded polymer armrests are generous in width and available with or without a cupholder
- Provided with VersaDeck construction with a minimum rise of 8”

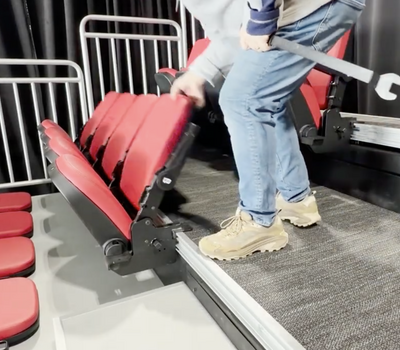

- Spring assist mechanism allows a single operator to store / deploy up to ten chairs at one time
Luxx Configuration Guide
| Chair Storage & Model | Seat Foam | Back Foam | Min. Row Rise | Max Row Rise | Min. Tread Depth | Max Tread Depth |
|---|---|---|---|---|---|---|
| Forward Fold Luxx 32" or 36" heights | 1.5" 38mm | 1.5" 38mm | 10" 254mm | 16" 406mm | 32" 813mm | 42" 1067mm |
| Forward Fold Luxx 32" or 36" heights | 2" 51mm | 2" 51mm | 13" 330mm | 16" 406mm | 32" 813mm | 42" 1067mm |
| Rear Fold Luxx 36" height | 3" 76mm | 2" 51mm | 8" 203mm | 16" 406mm | 33" 838mm | 36" 914mm |
For patron comfort and platform function a minimum tread depth of 34" (863mm) is recommended.
Forward fold 36" high backs on tread depths below 36" will extend beyond the platform when stored.
The above guide does not show all options and limitations that may exist, please discuss your options with your Irwin Seating representative. Additional options exist to meet unique site conditions.
