Luxx

Forward-Fold on VersaTract Platforms

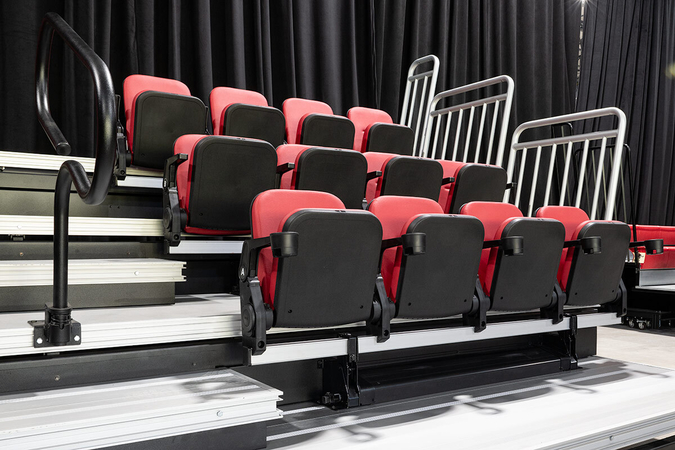

Luxx FF 1249

Luxx rail mount chairs are available with the industry’s first semi-automated chair fold down telescopic system to create a superior experience with faster changeovers and increased ROI.


We've designed Luxx with flexibility built right in so it can be used in a variety of configurations.


Key Advantages:


  • Backs and seats are sewn with French-seams for a crisp, stylish appearance, backs include a horizontal pleat for a consistent appearance with fixed seating models
  • Available in 32” or 36” back heights - see guide below

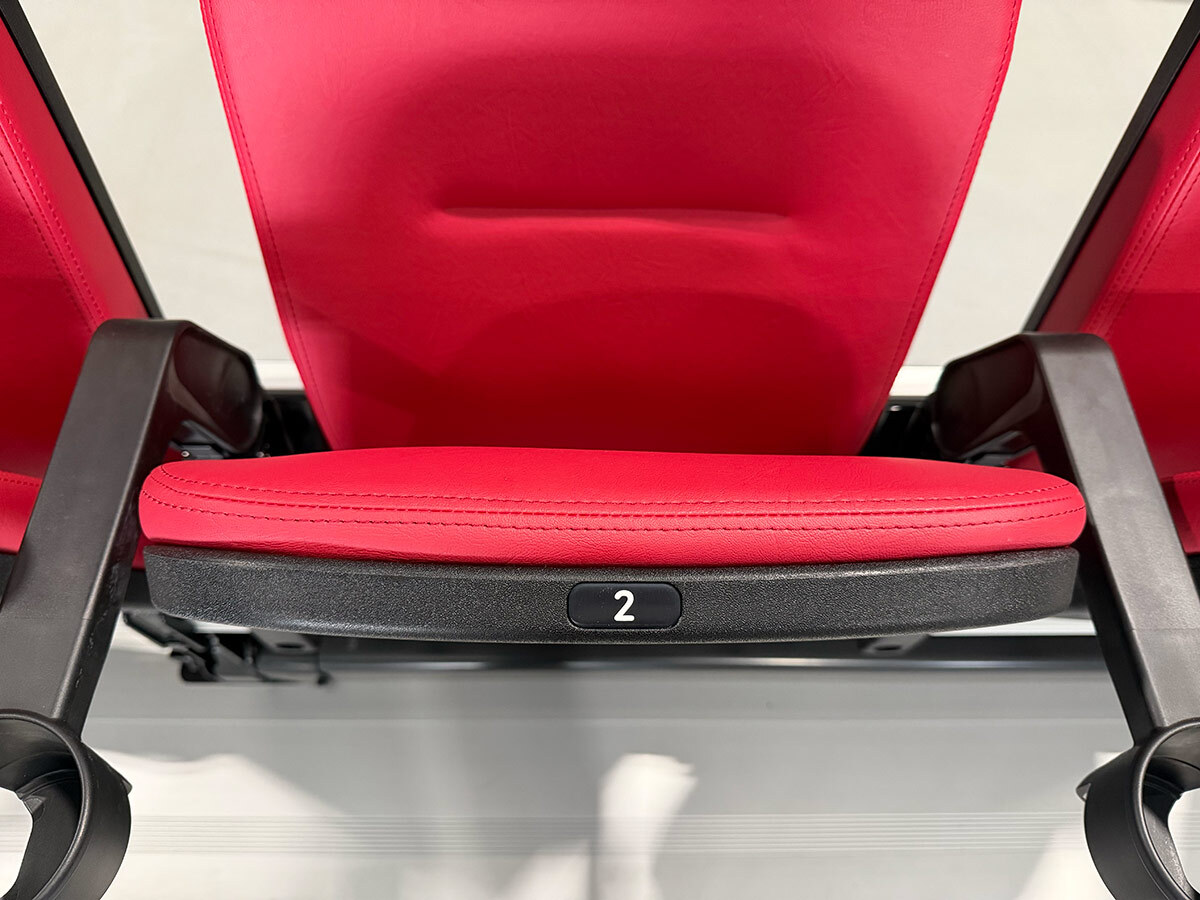

  • Backs and seats are provided with 1-1/2” or 2” molded foam cushions - see guide below
  • Available with embroidered logos
  • Seats can be provided with 3/4 safety fold or full fold self-rising mechanisms
  • Backs can be installed in three back pitches (13.5°, 15.5°, 18.5°) to optimize sight lines and comfort

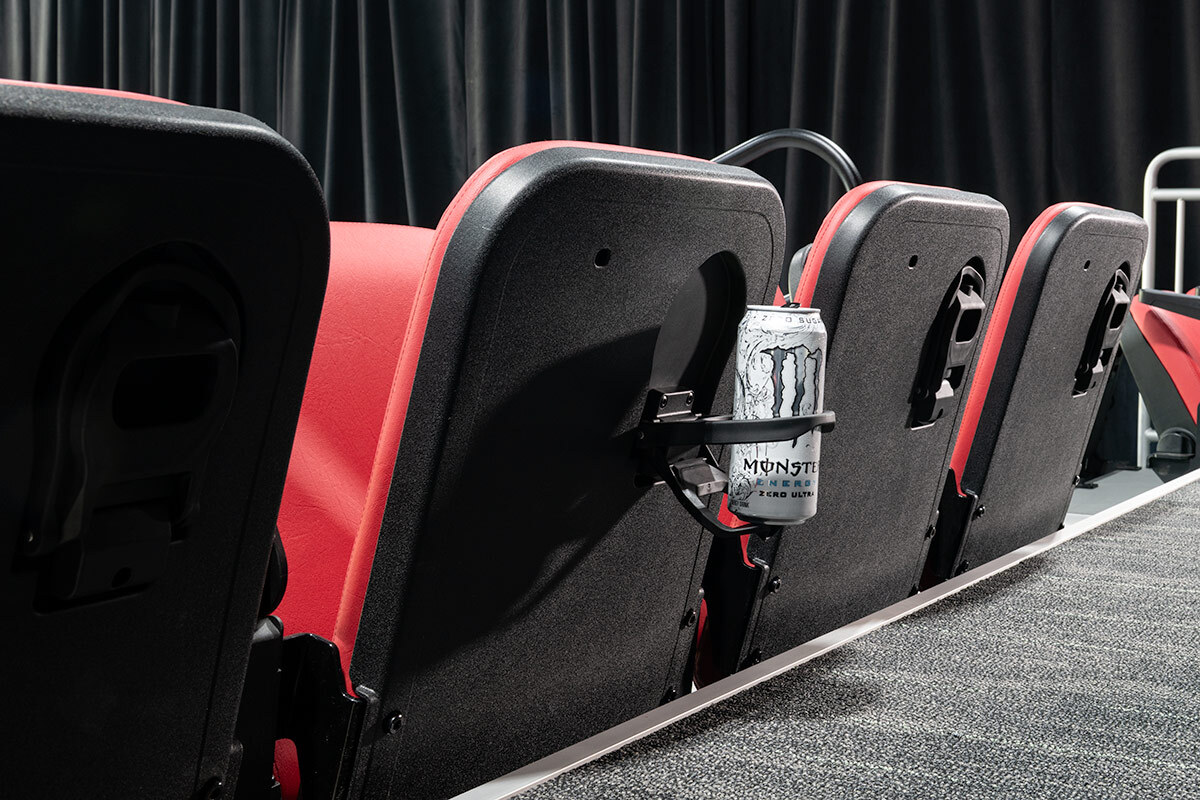

  • Available with our innovative rear-mount flip-up cupholder that stores within the molded recess when not in use
  • Black, molded polymer armrests are generous in width and available with or without a cupholder
  • Available on standard deck or VersaDeck with a minimum rise of 10”

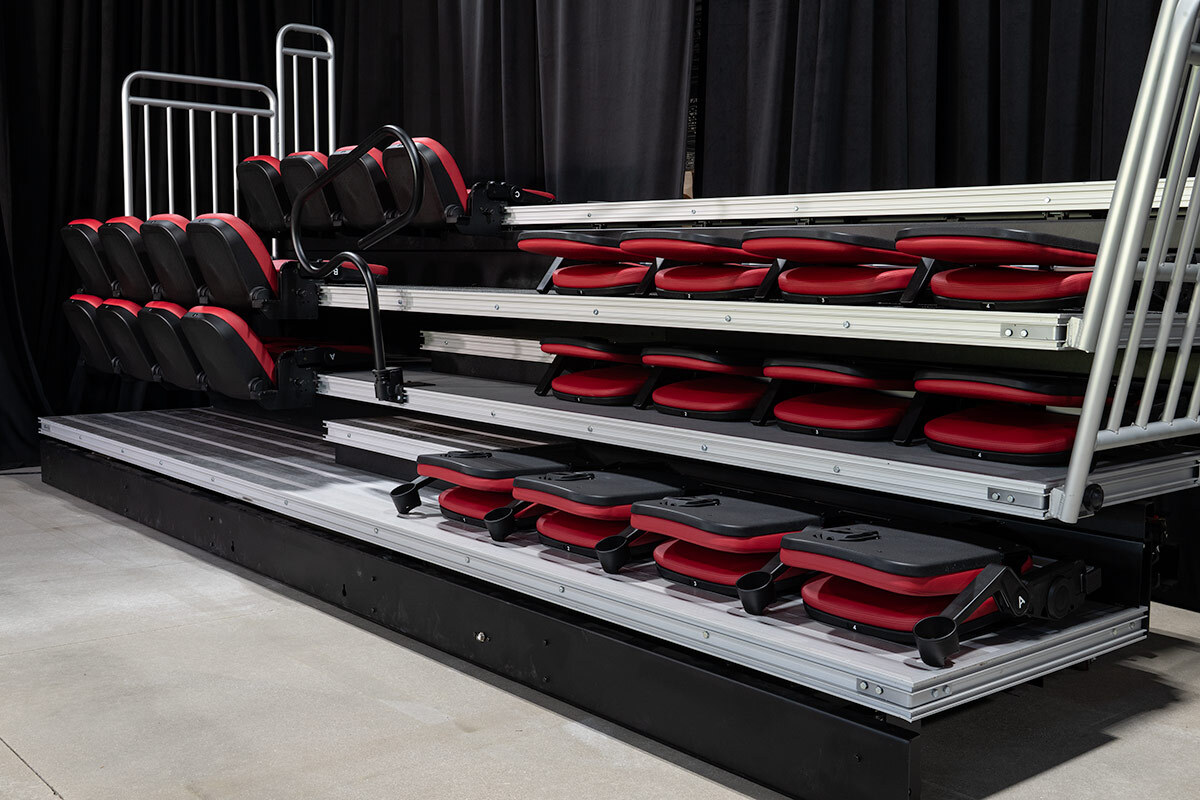

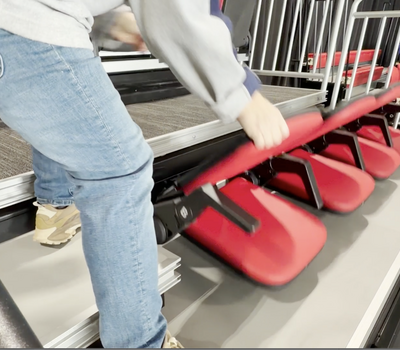

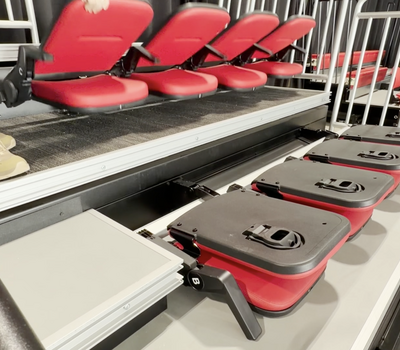

  • Spring assist mechanism allows a single operator to store / deploy up to eight chairs at one time
  • Provided with molded dust / debris cover to protect the mechanism and assist with cleaning

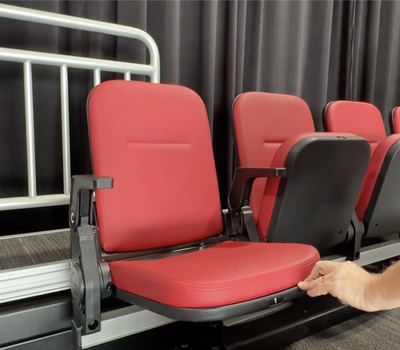

  • Forward-fold chairs are available with our patented auto-arm mechanisms that assist in maximizing egress in-and-out of the rows for both comfort and code compliance. (regular arms only)

Images

[click to enlarge]
Luxx Configuration Guide
Chair Storage & Model
Seat Foam
Back Foam
Min. Row Rise
Max Row Rise
Min. Tread Depth
Max Tread Depth
Forward Fold
Luxx 32" or 36" heights
1.5"
38mm
1.5"
38mm
10"
254mm
16"
406mm
32"
813mm
42"
1067mm
Forward Fold
Luxx 32" or 36" heights
2"
51mm
2"
51mm
13"
330mm
16"
406mm
32"
813mm
42"
1067mm
Rear Fold
Luxx 36" height
3"
76mm
2"
51mm
8"
203mm
16"
406mm
33"
838mm
36"
914mm

For patron comfort and platform function a minimum tread depth of 34" (863mm) is recommended.
Forward fold 36" high backs on tread depths below 36" will extend beyond the platform when stored.


The above guide does not show all options and limitations that may exist, please discuss your options with your Irwin Seating representative. Additional options exist to meet unique site conditions.
